TRAMPA 35° Un-Breakable Mountainboard Deck - Drilled, Edged, Fitted with JESSOP Grip tape & a Marine Grade Stainless Steel Hex Head Bolt kit

TRAMPA 35° Un-Breakable Mountainboard Deck - Drilled, Edged, Fitted with JESSOP Grip tape & a Marine Grade Stainless Steel Hex Head Bolt kit 35º Mountainboards will fit to Spring Trucks Complete deck Drillage edging and sanding 1x 9 Inch squares of Top Quality Jessup Grip tape Marine Grade Stainless Steel Complete ATB Deck Bolt Kit NO Wings - 12-18ply Complete Deck TRAMPA Handmade VINYL Sticker Kit
RRP
£165+
schematic

flexometer

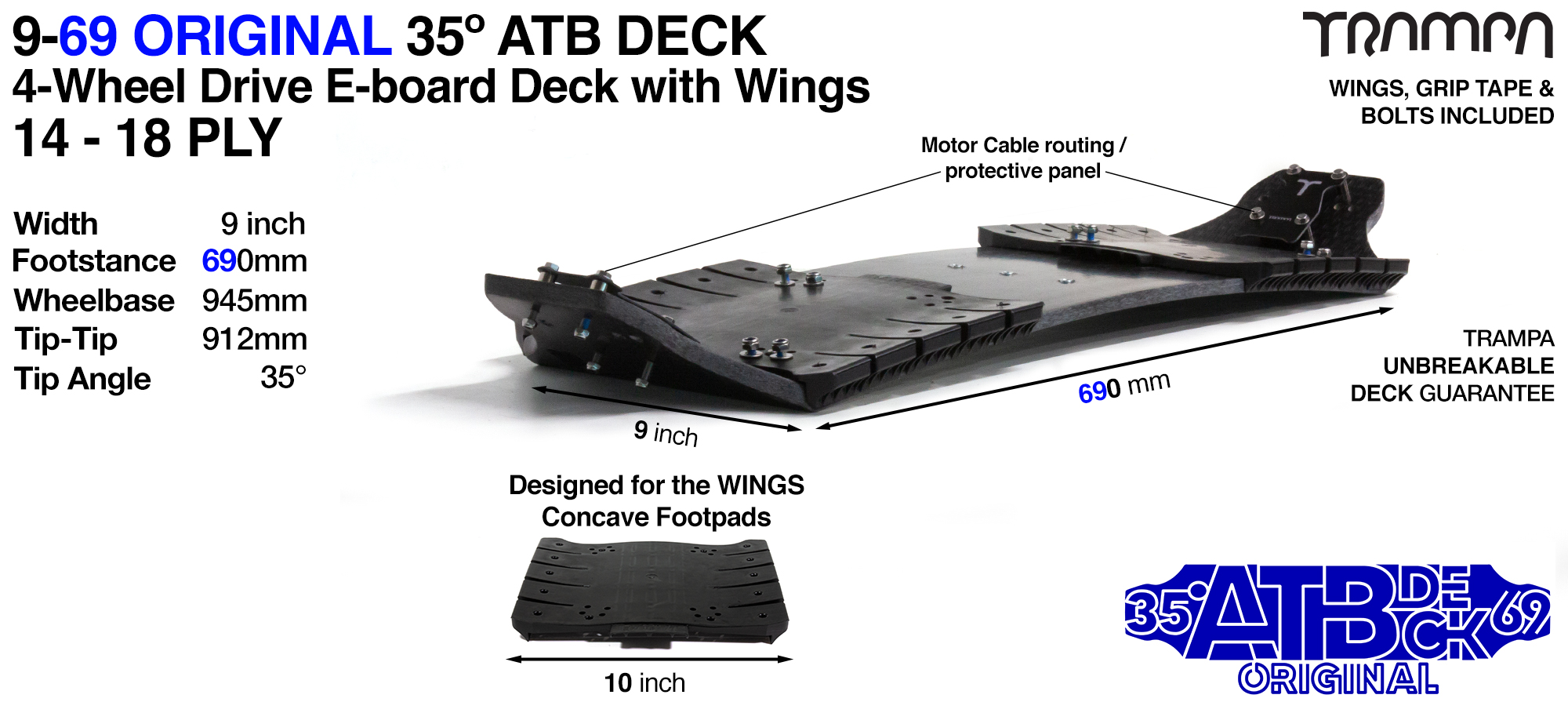

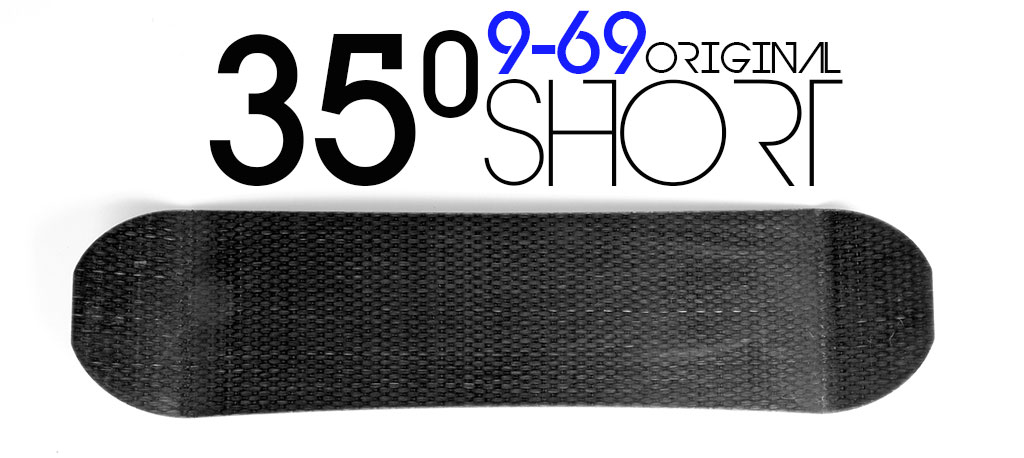

TRAMPA's 35° 9/69 MOUNTAINBOARD DECK is a fresh cut look of our original 35° range of  Decks.

Straight sided & specially shaped so it can be installed with the TRAMPA WINGS (or used without WINGS if your not wishing to install a center mounted Battery boxes or if you have smaller sized feet not requiring the WINGS) as well as being used as a regular Mountainboard deck being ridden down a hill, the latest 9/69 Mountain board shape has been created more so to perfectly fit with pretty much all of TRAMPA's incredible range of Motor Mounts, Battery boxes & Electrical products.

WINGS are an injection moulded riser pads that are screwed to & though the surface of the TRAMPA Deck. The WINGS have a foot-hugging W shaped concave surface enhancing comfort under the foot & increasing Grip on the surface & houses an integrated cable routing channel on the underside to allow for under-foot cable routing from the battery boxes to the motors at the rear of the Deck.

WINGS also increase the width of the deck from 9 to 10 inches!!! Being 10 Inches wide allows more comfort for a larger foot/shoe whilst adding extra leverage beneath the toes & heels, giving adult sized riders tighter turns & arguably deeper carving!

TRAMPA decks are considered the strongest & the most customisable decks on the market! They are best used when installed as complete electric decks from TRAMPA & highly versatile for DIY'ers looking to mix things up.

Our Deck performance is un-matched by any other brand! Once cooked our impenetrable composite weave is so strong that the secret material will not split or break in anyway. They come with a life time guarantee. Our decks come in 2x lengths (9/69 & 9/73) & different Flex performances (ply - the more layers of material added to the mould the stiffer the deck is) to accommodate any rider, in any environment, land, air & sea & regardless of which deck / ply you choose, or the environment that you use it in, because all TRAMPA Decks are sold as UN-BREAKABLE & to prove this we offer you a lifetime guarantee!

The stiffness of a TRAMPA deck is measured in "Ply", referring to how many layers of the secret formula material are used to make the deck. The more ply added, the stiffer & heavier the deck will be, ranging from 14-18ply in the 9/69 decks and 17-18ply in the Longer 9/73. The number 9 in the name refers to the width of the deck being 9 inches, whilst the 69 or 73 refers to the length of Centimeters (CM's) in the foot stance area. Yes we realise that's mixing up CM's with Inches, but it sort of sounds nice.... The most important things is that with all the different deck ply options over the 2 lengths we offer there’s a perfect TRAMPA deck for everyone!

TRAMPA decks are universally fitting, they can be drilled to fit all Truck or Binding systems known - this makes TRAMPA decks the perfect option when choosing an upgrade for your existing setup.

Throughout years the riders have put them to their paces and  nobody has ever broken a TRAMPA deck! Please see the Flexometer guides to help you find your perfect deck.

If you’re unsure as to what the best ply & deck is for you and would like some guidance then please fill in the "Which deck for is me questionnaire" by mailing this link.





35º Mountainboards will fit to Spring Trucks

TRAMPA Mountainboard decks are Un-Breakable. In over 20 years nobody has ever broken one. They are available as 9/69 or 9/73. 9 is the deck width measured in inches, 69 or 73 is the foot stance area measured in Centimeters. The 9/73 suits longer legged riders. Both decks can be fitted with WINGS to increase the deck width from 9 to 10 inches, to give safe routing for cables from the box in the mddle of the deck under the foot to the motors or controllers at the rear of the deck & to give a comfortable W Shaped Concave feel to the rider under the foot....

1x 9 Inch squares of Top Quality Jessup Grip tape

Mega Grippy & really easy to apply. Ensure the decks surface is clean & dry before application. Easy to custom shape, simply draw your shape on the back & cut out with Scissors or sharp knife. Remember to use a ruler for clean edges. Watch your fingers when slicing, please ask an adult to make this work if you are under 16 & please remember, when you draw on the back of the grip tape remember its a mirror image so do everything in switch! Use a template for best results... :-)

M6 x 25mm Countersunk Allen-Key Bolt - Marine Grade Stainless steel with locking paste

Made from A4 Marine Grade Stainless Steel, all of the nuts, bolts & screws used in a TRAMPA board have proven to be up to the challenge of holding everything together. Using Marine Grade Stainless Steel also means these Bolts will never rust on you! They can cope with the harshest of weather conditions & will laugh in the face of sandy/salty beaches or muddy freeride tracks - which can turn other manufacturers’ nuts & bolts into corroded rusting wrecks!

Wherever possible, we dip all our bolts into BLUE THREAD LOCKING PASTE, to ensure an extra strong & secure fix between the nuts & bolts.

The head of this Bolt is COUNTERSUNK, meaning that when screwed into position it sits flush & neat with the surface its screwed into. Preventing bolts from standing proud eliminates the chance of anything getting "snagged or hung-up" should it get caught on something..

Used For;

-Bindings

M5 x 25mm HEX Head SHANKED Bolt - Marine Grade Stainless steel with locking paste

Made from A4 Marine Grade Stainless Steel, all of the nuts, bolts & screws used in a TRAMPA board have proven to be up to the challenge of holding everything together. Using Marine Grade Stainless Steel also means these Bolts will never rust on you! They can cope with the harshest of weather conditions & will laugh in the face of sandy/salty beaches or muddy freeride tracks - which can turn other manufacturers’ nuts & bolts into corroded rusting wrecks!

Wherever possible, we dip all our bolts into BLUE THREAD LOCKING PASTE, to ensure an extra strong & secure fix between the nuts & bolts.

M5 Nut - Marine Grade Stainless steel Nylock Nut - Fixes to Trucks & Bindings

Introducing TRAMPA's M5 (5mm Thread) A4 Marine Grade Stainless steel Nylock Nut. This Nylock Nut will fit to all M5 Bolts regardless of their length. This A4 Marine Grade Stainless Steel Nut will never rust on you! It is fitted with the world renowned NYLOCK System (Nylock is a nylon locking system where Nylon is pasted into the threads of the nut so that when the bolt is tightened into the nut the nylon grabs the thread of the bolt holding it locking it in the thread ensuring things do not vibrate loose or fall off when being ridden on rough terrain like that which a Mountain or Kiteboard endures. The NYLOCK thread locking security System is fitted as standard to all TRAMPA Nuts

This Nut is used to fix to the Regular shaped M5 Bolts that hold the TRUCKS to the DECK for all  Decks & also for the Dome Head Bolts connecting the L BRACKETS to the BindingsUse an 8mm spanner or Ratchet Drive to tighten the Nut onto the Bolt. Always ensure your Nuts & Bolts are tight before you ride!

M6 Nut - Marine Grade Stainless steel Nylock Nut - Fixes Bindings & Trucks to Deck

Introducing TRAMPA's M6 (6mm Thread) A4 Grade Marine Grade Stainless steel Nylock Nut. This Nylock Nut will fit to all M6 Bolts regardless of their length. This A4 Marine Grade Stainless Steel Nut will never rust on you! It is fitted with the world renowned NYLOCK System (Nylock is a nylon locking system where Nylon is pasted into the threads of the nut so that when the bolt is tightened into the nut the nylon grabs the thread of the bolt holding it locking it in the thread ensuring things do not vibrate loose or fall off when being ridden on rough terrain like that which a Mountain or Kiteboard endures. The NYLOCK System is fitted as standard to all TRAMPA Nuts

This Nut is used to fix to the Regular shaped M6 Bolts that hold the TRUCKS to the DECK for the HOLYPRO Decks & also for the countersunk bolts connecting the L BRACKETS TO the DECKs. Use an 10mm spanner or SOCKET for a Ratchet Driver to tighten the Nut onto the Bolt. Always ensure your Nuts & Bolts are tight before you ride!

130mm - Hand made TRAMPA Vinyl Sticker

Everybody loves stickers, especially TRAMPA VINYL stickers! TRAMPA vinyl's are pain-stakingly hand made at TRAMPA HQ using the absolute finest Vinyl material available! So long as the area it is to be stuck to is clean the Vinyl we use is guaranteed to stick well & not fade for well over 5 years. These BLUE vinyl stickers are sized to fit onto the top of the Trampa deck, the dimensions are 130mm long x 28mm high.

There are loads of colours to choose from and the price starts at just 30 pence each - so custom pimping your deck, car, van, boat, bedroom window or any other surface you can think of that would benefit with a TRAMPA logo slapped on it is really easy & cheap to do... Help TRAMPA the world with the Pimp-est vinyl stickers EVER!

To Apply - Ensure the surface is clean & grease free before applying the sticker. Peel the thick side away from the Masking tape so the sticker appears in reverse (negative) and simply lay the masking tape onto the surface in question. Using your fingers or a soft cloth, rub the masking tape, forcing any air out of the vinyl & allowing the vinyl to stick well. Then gently peel away the masking tape to reveal the Vinly. This VIDEO may help...

Everybody loves stickers, especially TRAMPA stickers! TRAMPA's Old Skool VINYL Stickers are pain-stakingly Hand Made at the TRAMPA HQ using the absolute finest Vinyl material available! So long as the area it is to be stuck to is clean the Vinyl we use is guaranteed to stick well & not fade for well over 5 years and most likely much longer! These BLUE Vinyl Stickers are sized to fit underneath the TRAMPA deck, the dimensions are 370mm long x 70mm high.

There are loads of colours to choose from & the price starts at just £2.50 each - so custom pimping your deck, car, van, boat, bedroom window or any other surface you can think of that would benefit with a TRAMPA logo slapped on it is really easy & cheap and easy to do...

Help TRAMPA the world with the Pimp-est vinyl stickers EVER! To Apply the Stickers - Ensure the surface you re applying too is clean & grease free before applying the sticker. Peel the thick side away from the Masking tape so the sticker appears in reverse (negative) and simply lay the masking tape onto the surface in question. Using your fingers or a soft cloth, rub the masking tape, forcing any air out of the vinyl & allowing the vinyl to stick well. Then gently peel away the masking tape to reveal the Vinly.

580mm - Hand made TRAMPA Vinyl Sticker

.

Recommended decks

Rider's weight Suggested deck Deck Weight Flex
51 - 76 kg
(8 - 12 stone)
14 ply 2,652g flexi
57 - 83 kg
(9 - 13 stone)
15 ply 2,852g firm
64 - 89 kg
(10 - 14 stone)
16 ply 3,052g stiff
76 - 102 kg
(12 - 16 stone)
17 ply 3,252g very stiff
89 - 152 kg
(14 - 24 stone)
18 ply 3,452g
DECK WEIGHTS INCLUDE ALL HARDWARE & DECK ACCESSORIES

TRAMPA's 35° 9/69 MOUNTAINBOARD DECK is a fresh cut look of our original 35° range of  Decks.

Straight sided & specially shaped so it can be installed with the TRAMPA WINGS (or used without WINGS if your not wishing to install a center mounted Battery boxes or if you have smaller sized feet not requiring the WINGS) as well as being used as a regular Mountainboard deck being ridden down a hill, the latest 9/69 Mountain board shape has been created more so to perfectly fit with pretty much all of TRAMPA's incredible range of Motor Mounts, Battery boxes & Electrical products.

WINGS are an injection moulded riser pads that are screwed to & though the surface of the TRAMPA Deck. The WINGS have a foot-hugging W shaped concave surface enhancing comfort under the foot & increasing Grip on the surface & houses an integrated cable routing channel on the underside to allow for under-foot cable routing from the battery boxes to the motors at the rear of the Deck.

WINGS also increase the width of the deck from 9 to 10 inches!!! Being 10 Inches wide allows more comfort for a larger foot/shoe whilst adding extra leverage beneath the toes & heels, giving adult sized riders tighter turns & arguably deeper carving!

TRAMPA decks are considered the strongest & the most customisable decks on the market! They are best used when installed as complete electric decks from TRAMPA & highly versatile for DIY'ers looking to mix things up.

Our Deck performance is un-matched by any other brand! Once cooked our impenetrable composite weave is so strong that the secret material will not split or break in anyway. They come with a life time guarantee. Our decks come in 2x lengths (9/69 & 9/73) & different Flex performances (ply - the more layers of material added to the mould the stiffer the deck is) to accommodate any rider, in any environment, land, air & sea & regardless of which deck / ply you choose, or the environment that you use it in, because all TRAMPA Decks are sold as UN-BREAKABLE & to prove this we offer you a lifetime guarantee!

The stiffness of a TRAMPA deck is measured in "Ply", referring to how many layers of the secret formula material are used to make the deck. The more ply added, the stiffer & heavier the deck will be, ranging from 14-18ply in the 9/69 decks and 17-18ply in the Longer 9/73. The number 9 in the name refers to the width of the deck being 9 inches, whilst the 69 or 73 refers to the length of Centimeters (CM's) in the foot stance area. Yes we realise that's mixing up CM's with Inches, but it sort of sounds nice.... The most important things is that with all the different deck ply options over the 2 lengths we offer there’s a perfect TRAMPA deck for everyone!

TRAMPA decks are universally fitting, they can be drilled to fit all Truck or Binding systems known - this makes TRAMPA decks the perfect option when choosing an upgrade for your existing setup.

Throughout years the riders have put them to their paces and  nobody has ever broken a TRAMPA deck! Please see the Flexometer guides to help you find your perfect deck.

If you’re unsure as to what the best ply & deck is for you and would like some guidance then please fill in the "Which deck for is me questionnaire" by mailing this link.

In this Purchase you get the following items & services...
1x 35º Mountainboards will fit to Spring Trucks
1x Complete deck Drillage, Edging Filing & Sanding
2x 1x 9x9 Inch square Jessup Grip Tape
8x M5 x 25mm HEX Head SHANKED Bolt - Marine Grade Stainless steel
8x M5 Nut - Marine Grade Stainless steel Nylock Nut
8x M5 Washer Form B - Marine Grade Stainless Steel
8x M6 x 25 Countersunk Allen-Key Stainless Steel Bolt
8x M6 Nut - Marine Grade Stainless steel Nylock nut
8x M5 Washer Form B - Marine Grade Stainless Steel
2x 130mm - Hand made TRAMPA Vinyl Sticker
1x 580mm - Hand made TRAMPA Vinyl Sticker


DECK OPTIONS

Please select what Shape Deck you would like
Please select what Shape Deck you would like

9/69 Mountainboard Deck
9/69 Mountainboard Deck

9/69 Mountainboard Deck with WINGS (+£40)
9/69 Mountainboard Deck with WINGS (+£40)

9/69 E-MTB Deck with WINGS - 2WD (+£55)
9/69 E-MTB Deck with WINGS - 2WD (+£55)

9/69 E-MTB Deck with WINGS - 4WD (+£70)
9/69 E-MTB Deck with WINGS - 4WD (+£70)

9/73 BigBoi Mountainboard Deck
9/73 BigBoi Mountainboard Deck

9/73 BigBoi MTB Deck with WINGS (+£40)
9/73 BigBoi MTB Deck with WINGS (+£40)

9/73 BigBoi E-MTB with WINGS - 2WD (+£55)
9/73 BigBoi E-MTB with WINGS - 2WD (+£55)

9/73 BigBoi EMTB with WINGS - 4WD (+£70)
9/73 BigBoi EMTB with WINGS - 4WD (+£70)

Quantity required:
We have enough parts to make…
RRP £165 - per deck

Excluding VAT
HCC: 6815120000

Approx price :
To see shipping prices delivered to your door please create an account and be logged into the system, so the system knows where you are and how much to quote you......
