Ratchet Bindings exact to your requirements

Ratchet Bindings exact to your requirements Ratchet Bindings exact to your requirements Ratchet Bindings exact to your requirements Ratchet Bindings exact to your requirements Ratchet Bindings exact to your requirements Ratchet Bindings exact to your requirements Ratchet Bindings exact to your requirements Ratchet Bindings exact to your requirements Ratchet Bindings exact to your requirements Ratchet Bindings exact to your requirements TRAMPA Ratchet & Camlock Style Footstrap & Ladder Custom TRAMPA L-Bracket CUSTOM Ratchet Buckle M5 Star Nut - Fixes Ratchet & Camlock to footstraps - Marine Grade Stainless steel M5 x 8mm Countersunk Allen-Key Bolt - Marine Grade Stainless steel with locking paste M5 x 20mm EXTRA WIDE Dome head Allen-Key Bolt - Marine Grade Stainless steel with locking paste M5 Washer Marine Grade Stainless steel M5 Nut - Marine Grade Stainless steel Nylock Nut - Fixes to Trucks & Bindings
RRP
£50+

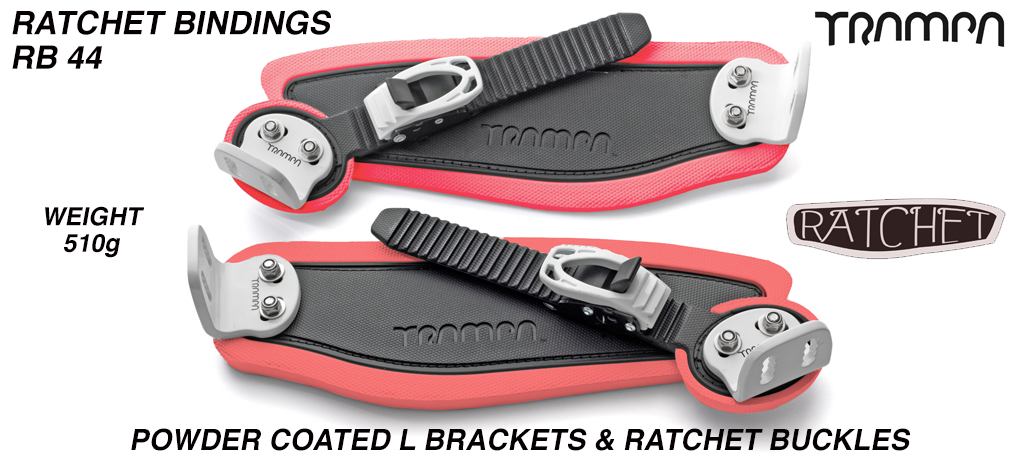

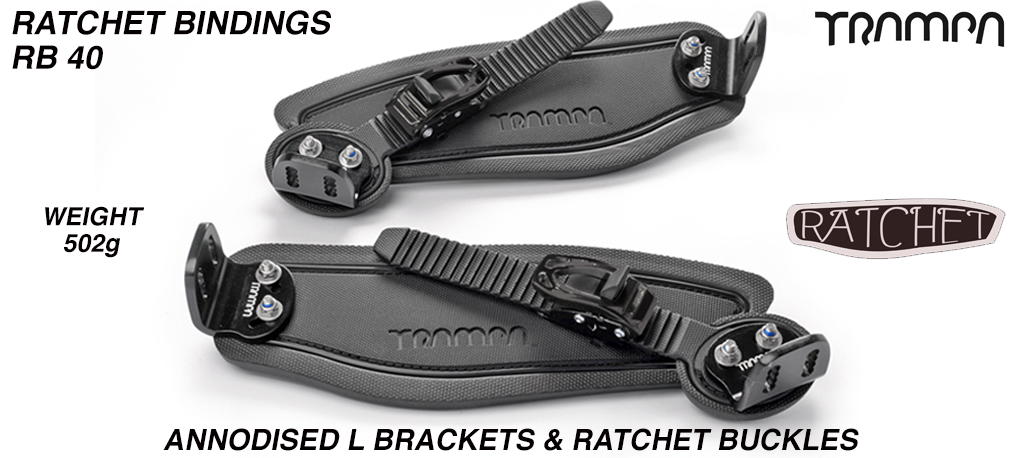

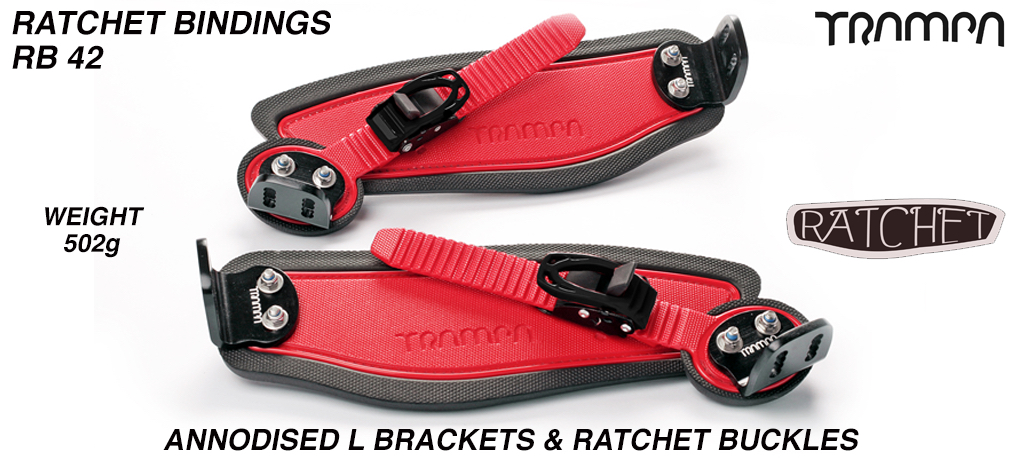

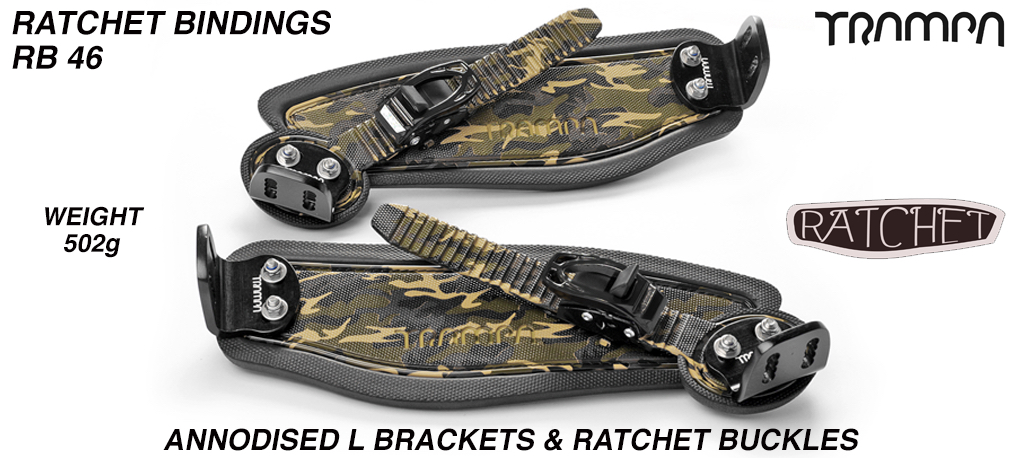

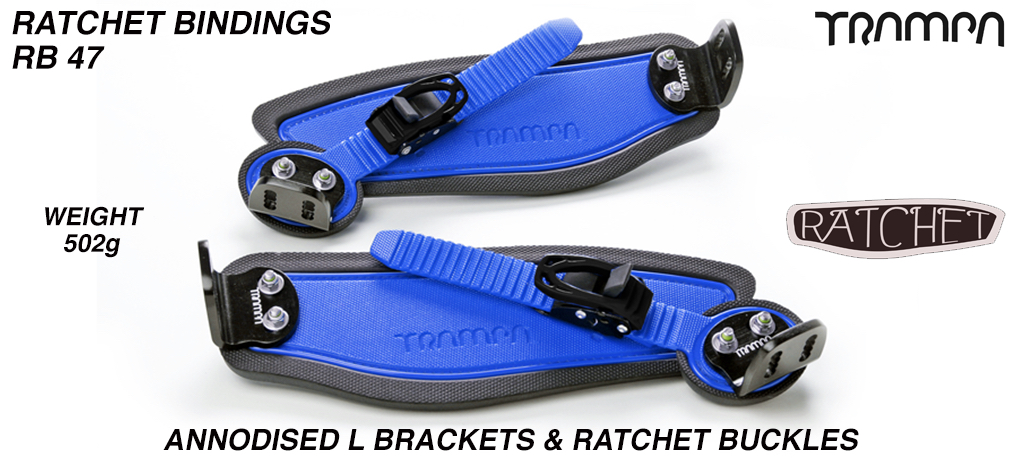

RATCHET BINDINGS are the Mountain Board rider’s primary choice of binding! The Ratchet Buckle mechanism allows you to easily position the binding to fit most adult sized shoes or boots. There is a release clip on the top of the Ratchet Buckle which works just the same as snowboard binding does, that release the pressure & allows you to step out...

The main Foot-Strap has a special 'Lug or locator' on the top of the Foot-Strap to house a special Hook that protrudes from the underside of Ratchet Buckle. This hook presses into the 'Lug' on the top of the Foot-strap preventing any sideways movement in the connection of the Strap & Ratchet Buckle

The Ratchet Buckle connects with a special M5 Star nut & M5x8mm Countersunk bolt & the Ratchet is mounted on the top of the Main Foot Strap. The LADDER STRAP Positions on the outside of the foot & feeds into the Ratchet Buckle. Levering the Ratchet buckle brings the two straps together. The Ratchet Buckle locks each time you lift the buckle tightening the two straps together until you have a snug but not tight connection over the top of your foot. The release clip can be tuff to move specially of your bindings have been ratcheted tight.

Ratchet Bindings work at their absolute optimum when combined with TRAMPA Heel StrapsHEEL STRAPS Completely lock your feet into any of the TRAMPA bindings to make you feel at one with the deck. When using Heel Straps you are 100% committed to the ride & by doing so you gain so much more control over the board.

With 3 pairs of different length Ladder Straps to choose from, the TRAMPA Heel Straps easily adjust to fit to any sized shoe that comfortably fits onto a Mountain Board . A CAMLOCK BUCKLE on one side of the strap is used to Lock the Ladder Strap on one side of your foot whilst a Ratchet Buckle is used on the other side for easy tightening/loosening adjustment. The Ratchet Buckle easily tightens the Ladder into the Heel Straps so that your foot is locked into a comfortable position!.

TRAMPA Heel Straps are universally fitting and are supplied with a Marine Grade Stainless Steel FITTING KIT as standard, so only take a few minutes to assemble.

ALL TRAMPA Bindings are assembled using a Marine grade A4 Stainless Steel hardware. The L-Brackets are 'multi positional' allowing the rider the exact foot-stance they require.

All TRAMPA bindings use Stainless steel Dome Headed Bolts, connected through the Footstrap into L-Brackets, ensuring no discomfort to the foot.

The L-Brackets are 'multi positional' allowing the rider the exact foot-stance they require

TRAMPA's huge range of bindings are the most customisable on the market - meaning you’ll be able to get the perfect fit for your riding style - in any colour scheme you can think up.






TRAMPA Ratchet & Camlock Style Footstrap & Ladder

TRAMPA Ratchet style foot-straps are the strongest & most Sturdy bindings on the market! Ergonomically designed to ensure a comfy fit, TRAMPA Bindings will keep your feet, locked into the perfect position, enabling your board to be as responsive as it should.? The L Brackets are connected to the footstraps using Marine Grade Stainless Steel Extra Wide DOME HEADED BOLTS. These will not "Pull through" or interfere with the comfort on the side of your foot what so ever....

Our amazing foot-straps have a special "SLOT" on the top of the plastic strap to allow the "90º Hook" (found on the base of the Ratchet or Camlock Buckle), to locate into.  This special slot locks the Buckle perfectly into place, eliminating any potential movement. A special Marine Grade Stainless Steel STAR NUT pushes into the foam from the underside of the strap & a 8mm countersunk bolt tightens the buckle firmly into the strap. Replacement foot-straps are sold as pairs & will fit both RATCHET & CAMLOCK Buckles. Ladder straps are sold separately.

Custom TRAMPA L-Bracket

TRAMPA L Brackets are made using 5mm thick Extruded T6 Aluminum - They should never fail on you. TRAMPA L-Brackets will fit to all of  the binding options TRAMPA has to offer.

Once the expensive material has been forced through the extrusion die, the continuous L shape that comes out the other side is then 'Punched' into the resulting profile that you can see. Extruding aluminum gives the metal the strongest molecular structure possible. Once punched its then sent off to be 'Heat Treated' then high quality polished to take off sharp or un-wanted edges and a nice shiny surface finish that is perfect for Anodising or Powder coating. All of TRAMPA's L Brackets come with a colour co-ordinating TRAMPA logo.

With 3 different mounting positions on the upright side of the L-Bracket its possible to customise the mounting position of the footstraps in the Mounting points of the L-Bracket & with 4 mounting positions in the Base of the L-Bracket you can customise the position of the L bracket on the deck suitable to your ride stance or leg length or just to your liking so with some trials & errors its possible to find the absolute perfect positioning for your feet & footwear when riding. Its important to have comfortable feet when riding....

TRAMPA's L-Brackets fit to all TRAMPA foot straps as well as most other brands foot straps & is therefore compatible to fit to both MBS & Scrub boards. Ensure all your nuts and bolts are tight before riding!

M5x20mm Extra Wide Dome Head Bolts with M5 nuts & M5 Washers connect the L Bracket to the TRAMPA Binding Foot Straps.

M6x25mm Countersunk bolts with M6 nuts & M6 Washers push through the deck from the underside & hold the L Bracket to the top side of the TRAMPA deck.

CUSTOM Ratchet Buckle

TRAMPA's RATCHET BUCKLE connects to FOOTSTRAPS & to HEEL STRAPAThe Ratchet Buckles are a fundamental component part of the BINDINGS, the RATCHET STYLE BINDINGS will not function without them.

Ratchet Buckles are most commonly used by Mountain Board Riders looking for the tightest connection to the Deck. By simply lifting the ratchet lever up & down feeds the Ladder Strap into the Ratchet Buckle gradually tightening as it goes. You can tighten the strap as much as you comfortably like the bindings to be. To undo the Ratchet Buckle simple apply some pressure to the Release Clip and the straps should simply pull apart.

The Base of the RATCHET BUCKLE has a "Special Hook" The Hook is used to slip into a special slot, anchoring the Ratchet into the footstrap, eliminating any movement in its mounting. This locking into position ensures maximum control over your board through your bindings at all times. A Quick Release Clip, using an extra long lever makes opening the bindings really easy to do, whilst a range of colour coordinating surface protection (colour) options allows you to match up in colour to all of the TRAMPA products on sale. Use an M5x8mm Countersunk Bolt & special Marine Grade Stainless steel STAR NUT to fix the Ratchet Buckle into the Foot StrapEnsure your nuts & bolts are tight before you ride!

M5 x 8mm Countersunk Allen-Key Bolt - Marine Grade Stainless steel with locking paste

Made from A4 Marine Grade Stainless Steel, all of the nuts, bolts & screws used in a TRAMPA board have proven to be up to the challenge of holding everything together. Using Marine Grade Stainless Steel also means these Bolts will never rust on you! They can cope with the harshest of weather conditions & will laugh in the face of sandy/salty beaches or muddy freeride tracks - which can turn other manufacturers’ nuts & bolts into corroded rusting wrecks!

Wherever possible, we dip all our bolts into BLUE THREAD LOCKING PASTE, to ensure an extra strong & secure fix between the nuts & bolts.

The head of this Bolt is COUNTERSUNK, meaning that when screwed into position it sits flush & neat with the surface its screwed into. Preventing bolts from standing proud eliminates the chance of anything getting "snagged or hung-up" should it get caught on something..

Used For;

-Ratchet Bindings

-Camlock Bindings

-Heelstraps

-3d Sprung Steel Flex Brake

M5 x 20mm EXTRA WIDE Dome head Allen-Key Bolt - Marine Grade Stainless steel with locking paste

Made from A4 Marine Grade Stainless Steel, all of the nuts, bolts & screws used in a TRAMPA board have proven to be up to the challenge of holding everything together. Using Marine Grade Stainless Steel also means these Bolts will never rust on you! They can cope with the harshest of weather conditions & will laugh in the face of sandy/salty beaches or muddy freeride tracks - which can turn other manufacturers’ nuts & bolts into corroded rusting wrecks!

Wherever possible, we dip all our bolts into BLUE THREAD LOCKING PASTE, to ensure an extra strong & secure fix between the nuts & bolts.

This Bolt is DOME HEADED, meaning that when screwed into position it sits low & neatly over the surface its screwed into. Preventing bolts from standing proud eliminates the chance of anything getting "snagged or hung-up" should it get caught on something..

Used For;

-Bindings

M5 Nut - Marine Grade Stainless steel Nylock Nut - Fixes to Trucks & Bindings

Introducing TRAMPA's M5 (5mm Thread) A4 Marine Grade Stainless steel Nylock Nut. This Nylock Nut will fit to all M5 Bolts regardless of their length. This A4 Marine Grade Stainless Steel Nut will never rust on you! It is fitted with the world renowned NYLOCK System (Nylock is a nylon locking system where Nylon is pasted into the threads of the nut so that when the bolt is tightened into the nut the nylon grabs the thread of the bolt holding it locking it in the thread ensuring things do not vibrate loose or fall off when being ridden on rough terrain like that which a Mountain or Kiteboard endures. The NYLOCK thread locking security System is fitted as standard to all TRAMPA Nuts

This Nut is used to fix to the Regular shaped M5 Bolts that hold the TRUCKS to the DECK for all  Decks & also for the Dome Head Bolts connecting the L BRACKETS to the BindingsUse an 8mm spanner or Ratchet Drive to tighten the Nut onto the Bolt. Always ensure your Nuts & Bolts are tight before you ride!

M5 Star Nut - Fixes Ratchet & Camlock to footstraps - Marine Grade Stainless steel

TRAMPA's M5 STAR NUT fastener is used for fixing the RATCHET or CAMLOCK to the BINDING FOOTSTRAP. This nut is made from Marine Grade Stainless Steel and is Guaranteed never to rust on you!

The cerated edges of the nut cut into the foam of the footstrap & create a solid fix into the bindings. The nut pushes into the foam of the Binding holding the Ratchet in the perfect position. As a tip, use an axle spacer to push the STAR NUT into position within the foot strap. It needs a good push into position to ensure it doesnt rip free from the fixing....   Use M5 x 8mm countersunk bolt to fix Ratchet or Camlock into the Footstrap

RATCHET BINDINGS are the Mountain Board rider’s primary choice of binding! The Ratchet Buckle mechanism allows you to easily position the binding to fit most adult sized shoes or boots. There is a release clip on the top of the Ratchet Buckle which works just the same as snowboard binding does, that release the pressure & allows you to step out...

The main Foot-Strap has a special 'Lug or locator' on the top of the Foot-Strap to house a special Hook that protrudes from the underside of Ratchet Buckle. This hook presses into the 'Lug' on the top of the Foot-strap preventing any sideways movement in the connection of the Strap & Ratchet Buckle

The Ratchet Buckle connects with a special M5 Star nut & M5x8mm Countersunk bolt & the Ratchet is mounted on the top of the Main Foot Strap. The LADDER STRAP Positions on the outside of the foot & feeds into the Ratchet Buckle. Levering the Ratchet buckle brings the two straps together. The Ratchet Buckle locks each time you lift the buckle tightening the two straps together until you have a snug but not tight connection over the top of your foot. The release clip can be tuff to move specially of your bindings have been ratcheted tight.

Ratchet Bindings work at their absolute optimum when combined with TRAMPA Heel StrapsHEEL STRAPS Completely lock your feet into any of the TRAMPA bindings to make you feel at one with the deck. When using Heel Straps you are 100% committed to the ride & by doing so you gain so much more control over the board.

With 3 pairs of different length Ladder Straps to choose from, the TRAMPA Heel Straps easily adjust to fit to any sized shoe that comfortably fits onto a Mountain Board . A CAMLOCK BUCKLE on one side of the strap is used to Lock the Ladder Strap on one side of your foot whilst a Ratchet Buckle is used on the other side for easy tightening/loosening adjustment. The Ratchet Buckle easily tightens the Ladder into the Heel Straps so that your foot is locked into a comfortable position!.

TRAMPA Heel Straps are universally fitting and are supplied with a Marine Grade Stainless Steel FITTING KIT as standard, so only take a few minutes to assemble.

ALL TRAMPA Bindings are assembled using a Marine grade A4 Stainless Steel hardware. The L-Brackets are 'multi positional' allowing the rider the exact foot-stance they require.

All TRAMPA bindings use Stainless steel Dome Headed Bolts, connected through the Footstrap into L-Brackets, ensuring no discomfort to the foot.

The L-Brackets are 'multi positional' allowing the rider the exact foot-stance they require

TRAMPA's huge range of bindings are the most customisable on the market - meaning you’ll be able to get the perfect fit for your riding style - in any colour scheme you can think up.

These binings are made using the following parts....
1x TRAMPA Ratchet & Camlock Style Footstrap & Ladder
4x Custom TRAMPA L-Bracket
2x CUSTOM Ratchet Buckle - Pick any colour you want :-)
2x M5 STAR NUT - Marine Grade stainless steel Star nut
2x M5 x 08 Countersunk Allen-Key Stainless Steel Bolt
8x M5 x 20 EXTRA WIDE DOME Headed Allen-Key Stainless Steel Bolts
8x M5 Washer Form B - Marine Grade Stainless Steel
8x M5 Nut - Marine Grade Stainless steel Nylock Nut
Custom build the Ratchet Bindings of your dreams.
Please use the drop downs opposite to select your custom options.
Weight: 553g
Please select - Which footstrap do you require..?
Please select - Which footstrap do you require..?

Black Strap with Black Foam Footstraps
Black Strap with Black Foam Footstraps

Black Strap with Blue Foam Footstraps
Black Strap with Blue Foam Footstraps

Black Strap with Red Foam Footstraps
Black Strap with Red Foam Footstraps

Blue Straps with Black Foam Footstraps
Blue Straps with Black Foam Footstraps

Blue Straps with White Foam Footstraps
Blue Straps with White Foam Footstraps

White strap with Black Foam Footstraps
White strap with Black Foam Footstraps

White Strap with Blue Foam Footstraps
White Strap with Blue Foam Footstraps

White Strap with Red Foam Footstraps
White Strap with Red Foam Footstraps

Quantity required:
We have enough parts to make…
RRP £50 - per pair

Excluding VAT
HCC: 3901300099

Approx price :
To see shipping prices delivered to your door please create an account and be logged into the system, so the system knows where you are and how much to quote you......
